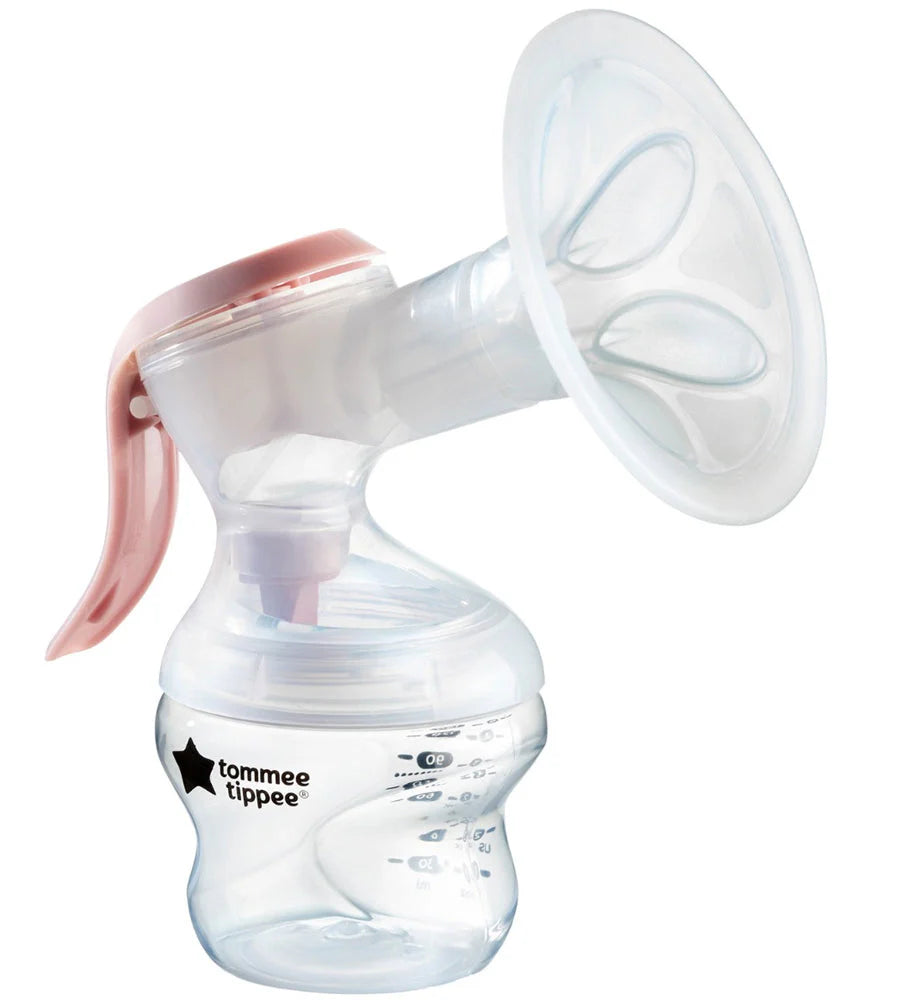

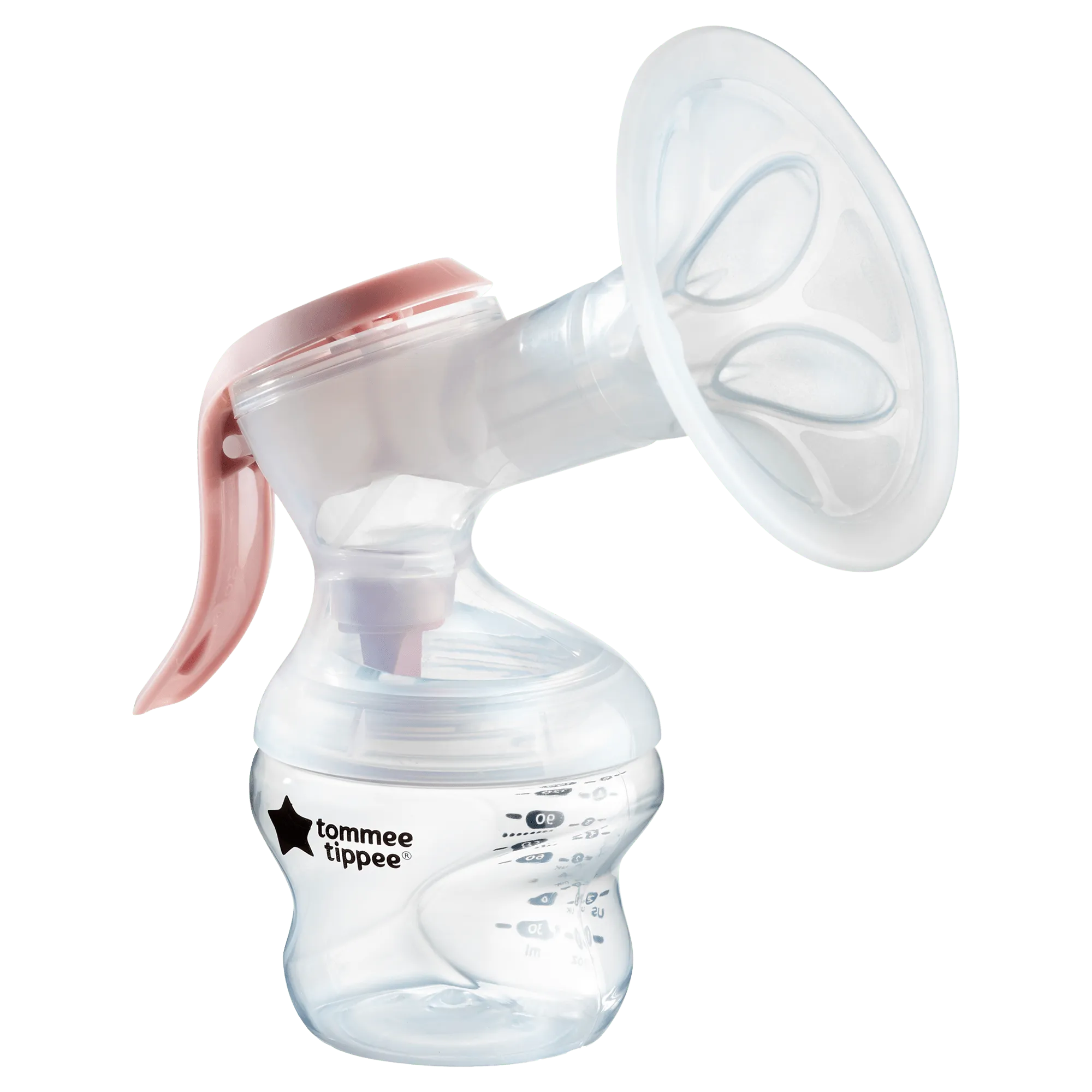

Tommee Tippee Made for Me Single Manual Breast Pump 0M+

• Ergonomic design – specially shaped to fit women’s hands
• Super quiet – compact and discreet enough to use anywhere
• Designed for comfort – super soft, cushioned silicone cup is gentle on sore breasts
• Quick to assemble – no tubes or cords, ideal for travel.

The Tommee Tippee Made for me Manual Breast pump has an ergonomic design that fits comfortably in your hand to give you the freedom to express breast milk whenever you choose. This manual breast pump is a simple and comfortable way to express your breast milk. With a narrow neck and curved handle, it helps to maximise the power of your pumping action while reducing the strain on your hand as you express your breast milk.

1. Horn - trumpet-shaped part with a soft edge to sit comfortably against your breast and petals for massaging to stimulate more milk flow.
2. Body – duck-shaped part that connects the horn and cup to your bottle and attaches to the handle.
3. Duck-bill valve (peach) – a small one-way valve that lets breast milk into your bottle, but doesn’t let it back through.
4. Connector – a rod-shaped piece that connects the handle to the diaphragm.
5. Diaphragm – the small, transparent cup-shaped part that creates the pump pressure.

6. Before you use your pump for the first time and after every use…

   • Wash your hands with soap and water and dry thoroughly before handling your breast pump.
   • Thoroughly clean and sterilize all the parts of your breast pump following the instructions below.

   How to clean your Manual Breast Pump

   1. Unscrew the bottle from the pump body.
   2. Pull the horn away from the pump body and remove the duck-billed valve.
   3. Disconnect the handle from the body by pulling away from the body horizontally.
   4. Lift out the diaphragm from the body.
   5. Pull out the connector rod from the diaphragm.
   6. Wash all parts in clean soapy water. Don’t use water that you’ve used for cleaning other products.
   7. Rinse thoroughly with clean water.
   8. You can also wash the pump components in the top rack of a dishwasher. Place the peach duck-bill valve in the cutlery rack or dishwasher pod to help keep it safe.
   9. Sterilize all parts of the pump using either cold water sterilization, microwave sterilization, boiling water, or electric steam sterilization.
   10. For best results use Tommee Tippee® electric or microwave sterilizers.

   Assembling your Manual Breast Pump

   Each time you use your breast pump, check all parts of the pump for any damage, and always wash your hands with soap and water and dry thoroughly before handling your breast pump.

7. Handle and cap (peach) – The curved handle that you use to pump. This snaps onto to the body and diaphragm via the connector.
